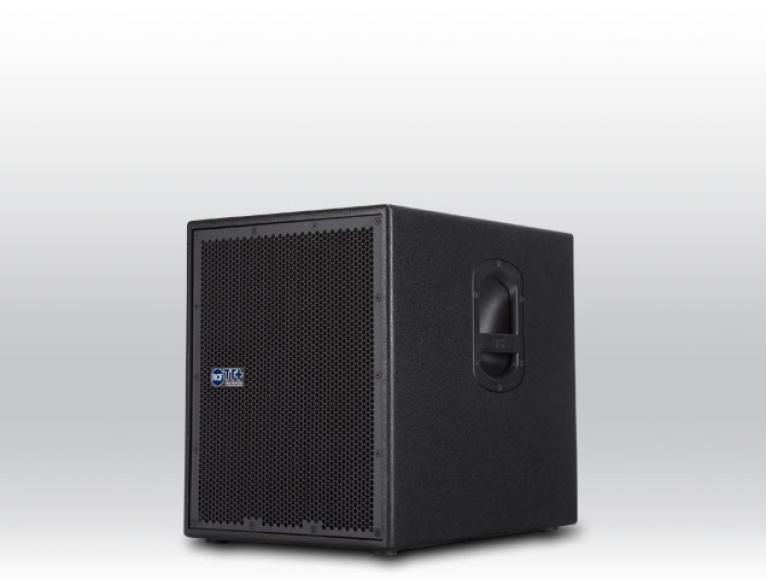

RCF TTS12-A

RCF TTS12-A (RCF TTS 12A)

The TTS12-A is an extremely compact high power subwoofer designed to compliment the TT08-A Speaker System.

Based around a band pass design using a newly designed 4” voice coil vented neodymium 12” woofer the TTS12-A is powered by the onboard 1000 Class D power switching amplifier. The system can be wired with one subwoofer plus two satellite TT08-A in full stereo, or on a one to one ratio from the built in active crossover system.

FEATURES

Very compact size
Maximum output per size available on the market
Minimum weight
High power full neodymium 12" transducer
1000 Watt switching amplifier
XLR in/out, Powercon in/out
Baltic birch cabinet

ACOUSTICAL SPECIFICATIONS

Frequency Response -3 dB:45 Hz ÷ 120 Hz
Max SPL:131 dB
Woofer:12" neo, 100 mm voice coil

INPUT/OUTPUT SECTION

Input signal:Bal / unbal
Input connectors:Stereo XLR
Output connectors:Stereo XLR
Input sensitivity:- 2 dBu / +4 dBu

PROCESSOR SECTION

Crossover frequencies:110 Hz
Protections:Thermal
Limiter:Fast limiter
Controls:Phase

AMPLIFIER SPECIFICATIONS

Total power:1000 W RMS
   Low frequencies:D/1000 W RMS
Cooling:Convection
Connections:Powercon in/out

CABINET

Cabinet Material:Baltic birch
Hardware:Pole mount
Handles:2 on side
Pole Mount/Cap:Yes
Colour:Black

PHYSICAL SPECIFICATIONS

Height:480 / 18.89 mm/inch
Width:390 / 15.35 mm/inch
Depth:530 / 20.86 mm/inch
Net Weight:28 / 61.73 kg/lbs
