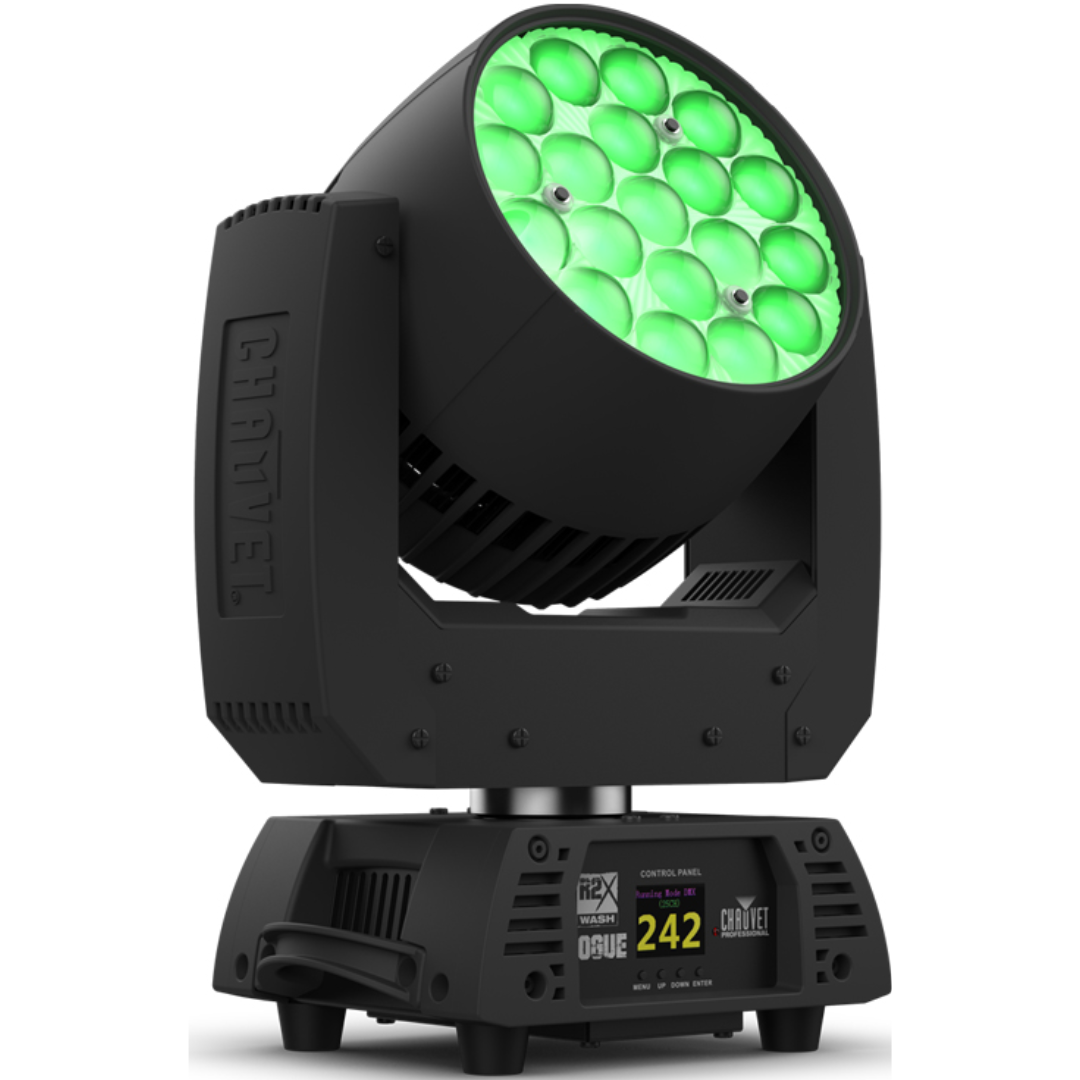

Chauvet Pro Rogue R2X Wash | 19x25W RGBW LEDs with Zoom | 5-Zone Pixel Control + 64° Wash

Chauvet Rogue R2-X Wash  (Chauvet Pro Rogue Wash R2 X)

LED Moving Head Wash Light

The Chauvet Pro Rogue R2X Wash is a powerhouse RGBW LED wash fixture built for production professionals who demand brightness, flexibility, and precision. With 19 quad-color LEDs, pixel zone control, and a wide zoom range, it’s ready to cover everything from subtle atmospheres to full-stage color floods.

Chauvet Pro Rogue R2X Wash Competitive Differences

• Five LED zones for pixel mapping and advanced effects
• Massive zoom range from tight 7.3° beams to wide 64.3° washes

Chauvet Pro Rogue R2X Wash Description

The Rogue R2X Wash by Chauvet Professional is a versatile moving head wash that’s at home in concert tours, theaters, houses of worship, and event production. With 19 powerful 25W RGBW LEDs and a zoom range of 7.3° to 64.3°, it delivers intense beams, smooth washes, and everything in between. Take full creative control with five zones of individual LED pixel mapping, or rely on built-in macros for quick, impactful effects. The fixture features smooth 16-bit dimming on both the master dimmer and individual color channels, delivering flawless fades and dynamic movement. Multiple DMX personalities (15–56 channels) offer flexibility for simple or advanced programming. It’s built for touring, with durable construction, fast and smooth pan/tilt movement, and RDM for remote troubleshooting. Selectable PWM frequencies ensure flicker-free performance on camera, and the OLED display offers intuitive navigation for all settings.

Model Features

• 19x25W RGBW LEDs with 50,000-hour lifespan
• 7.3°–64.3° motorized zoom range
• Five independently controllable LED zones
• Smooth 16-bit dimming on master and color channels
• Selectable PWM rates for video compatibility
• Fast and accurate pan/tilt with multiple range settings
• Simple and complex DMX profiles (up to 56 channels)
• RDM-enabled for remote addressing and diagnostics
• PowerCON in/out and both 3- and 5-pin DMX connectors

Model Specifications

• Light Source: 19x 25W RGBW LEDs
• Zoom Range: 7.3° to 64.3°
• Beam Angle: 7.3°–35.2°
• Field Angle: 11.2°–51.2°
• Cutoff Angle: 17.6°–64.3°
• Lumens (Source): 10,300
• Lumens (Output): 6,418
• Illuminance: 8,149 lux @ 5m (11.2°), 726 lux @ 5m (51.2°)
• Pan: 540°, Tilt: 230° (multiple range settings)
• Strobe: Electronic, 0–20Hz
• Dimmer: 0–100% electronic, 16-bit
• DMX Channels: 15, 17, 22, 33, 54, or 56
• Control Modes: DMX512, RDM
• Selectable PWM: 600Hz to 15,000Hz
• Display: OLED with menu navigation
• Power Connection: PowerCON In/Out
• DMX Connection: 3-pin and 5-pin XLR In/Out
• Power Consumption: 342W @ 120V
• Voltage: 100–240V, 50/60Hz (auto-ranging)
• Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
• Weight: 22.8 lb (10.3 kg)
• IP Rating: IP20 (indoor use)

What's In The Box

• Rogue R2X Wash fixture
• PowerCON power cable
• Omega bracket with mounting hardware
• User manual
