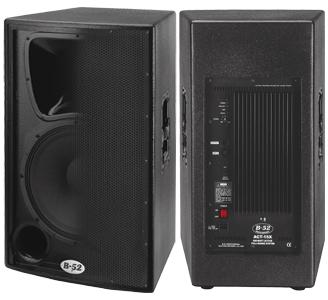

B-52 ACT15X

B-52 ACT 15 X (B52 ACT15-X)

The best sounding powered 15" DJ speaker!

Available with painted cabinet (B-52 ACT-15X) and with carpeted cabinet & caster wheels (B-52 ACT-15)
The ACT-Series full-range systems are apable of producing rich, clear, sound at even extreme SPLs. The ACT amplifiers employ sophisticated circuitry including four stages of equalization, a built-in compressor, limiter and short circuit / over-current protection.

The ACT-15(X) is a 600-watt single 15" two-way, ideal for use by itself or with an ACT-Series subwoofer for a
powerful full-range system. Available in your choice of roadworthy black paint or black carpet finish.

• Made in the USA
• 13-ply Baltic birch construction
• Reinforced internal bracings
• Warnecke & Bohnscratch-resistant paint finish
• Aeroports for lower distortion & increased output
• Titanium compression driver on elliptical wave guide
• Custom 15" transducers optimized for
• high output & low distortion

COMPRESSOR & EQUALIZER
The highly sophisticated compression circuitry in the ACT-15(X) allows for impressive SPLs while minimizing the risk of damage to either the amplifier or loudspeakers. The four-stage equalization network built-in into the amplifier is the perfect complement to the system's loudspeaker components.

ACT-15(X) SPECIFICATIONS
• Class H Amplifier with 2-stage power supply
• 600 Watts @ 8 Ohms
• Max System SPL: 130dB
• Frequency Response:40-19K Hz
• Max power requirements:
• @ 120 Volts AC = 5 Amps
• Max Power Requirements:
• @ 230 Volts AC = 3 Amps
• Rated THD: 0.03%
• Built-in compressor-limiter 4-stage equalization
• Amplifier S/N ratio =  100dB A-weighted
• Subsonic filter: 18 dB / Octave @ 30 Hz
• XLR balanced input & output
• Amplifier thermal & short circuit protection
• Signal sensing circuitry with LED indicators

CABINET FEATURES
• Superior grade of 13-ply Baltic birch
• Heavy-duty scratch resistant durable black
• paint finish (ACT-15X)
• Carpet finish (ACT-15 & ACT-1515)
• 2 3/8" diameter steel pole mount cup
• 16-gauge perforated steel grille for
• maximum protection
• Flared ports for highest available output
• Dimensions (W" x H" x D"): 19.75 x 32 x 18.5
• Weight: 95 lbs
• ACT-15XF is the model specifically designed
• with built-in flying hardware
